Vertical E

The Adexon FC120E fire curtain is manufactured to prevent the spread of flames and smoke through vertical openings such as doorways, windows, and elevator shafts. In the event of a fire, this curtain automatically deploys, forming a secure barrier that effectively contains fire hazards. The FC120E seamlessly integrates into any architectural style, offering unobtrusive fire safety without compromising aesthetics.

Ideal for commercial, industrial, and residential environments, it can be fully customised to meet specific fire safety standards and design preferences, ensuring both protection and visual harmony

Product name
Classification
Max size
Adexon-FC1-E120
120 minutes fire integrity
Unlimited width x 10m

If you require extra understanding what classification you need, read our E, EI,  EW article here

Product category

Vertical E
Smoke seals
Available
Closing cycles
C1 | Tested according to BS EN 16034:2014
Side guide
1.2mm thick folded galvanized steel enclosure, powder-coatable to suit.
Fire curtain material
Fire-resistant Tectex 450-PU/2 (0,37 mm thick and 450 gr/m2). Woven fiberglass strands with reinforcing stainless steel wires, covered in flame-retardant polyurethane.
Standard
Tested and CE marked according to BS EN 16034:2014 in Conjunction with EN 13241:2003+A2:2016

Downloads

Download the relating product PDF information documentation. For further supporting documents that are not listed, please reach out to one of the team.

[iframe title="NBS Source website integration" src="https://websiteintegration.source.thenbs.com/product/fe1222cb-f191-4f3f-abd3-5c21b7a3635d/add-to-spec?defaultButton=default&productListing=spec&size=responsive&showSpecHelp=true&product=fe1222cb-f191-4f3f-abd3-5c21b7a3635d" style="width: 100%; height: 100%; border: none;"]
Brochure
Download
Optional extras brochure
Download

Certificate

Download
Uniclass  specification
Download
Drawing
Download

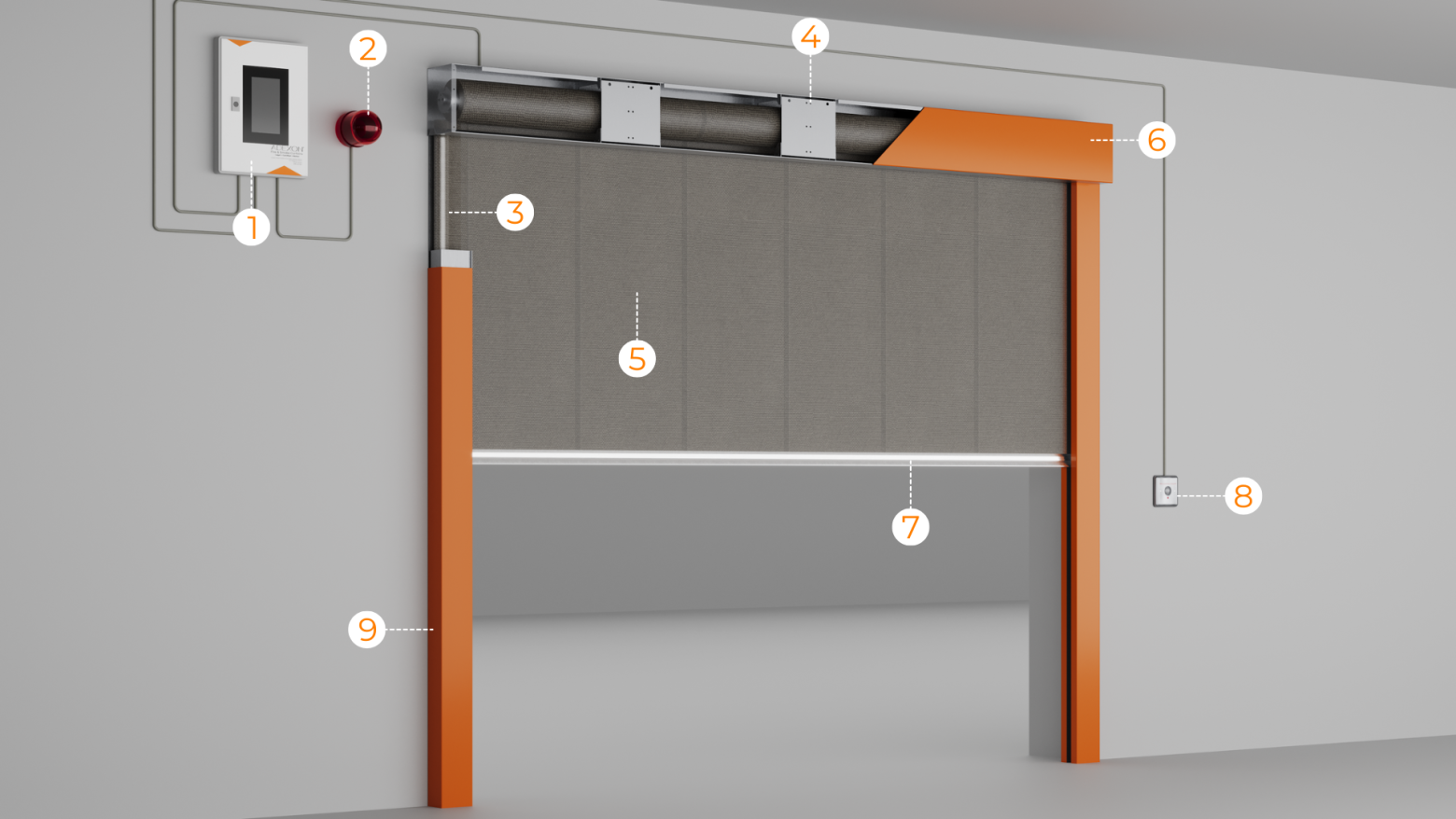

Product exploded view

Key

  1. Control panel: Control panel for managing the operation of the curtain.
  2. Alarm indicator: Visual and/or audio operation warning (optional extra).
  3. Side guide/track: Full-length fire-rated side guide for proper isolation of fire and smoke.
  4. Headbox support: Supports for forming the box and holding the roller (depending on model)
  5. Curtain fabric: The fire curtain fire/smoke-rated fabric
  6. Housing: Headbox housing
  7. Bottom bar: Weighted bottom bar customisable in various finishes
  8. Emergency Retract Button (ERB): Allows manual override of the curtain in case of emergency (optional extra).
  9. Side guide cover: Offers reinforcement to the structure and protects against collisions.
All Headboxes Side guides

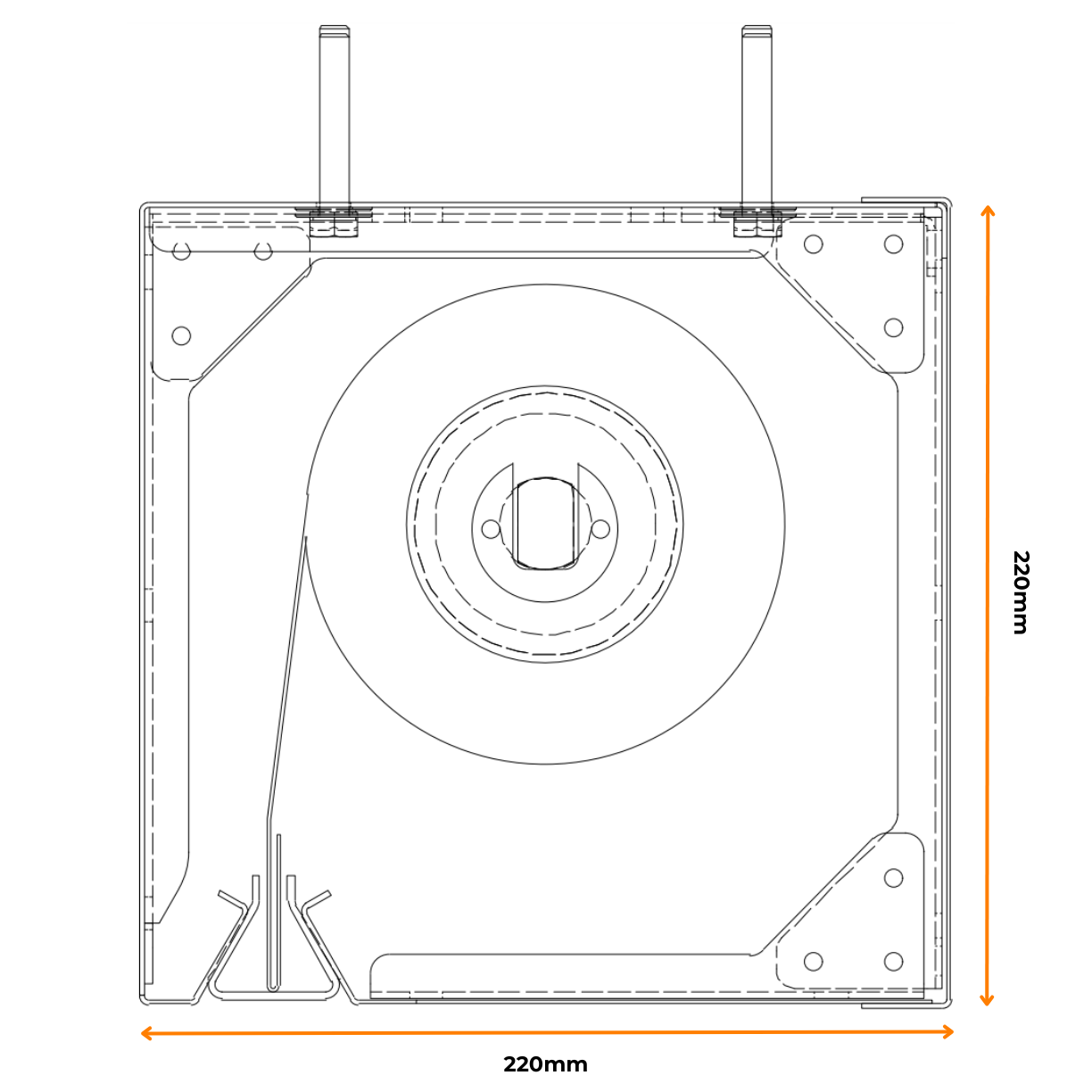

Vertical-headbox-reveal-fixed

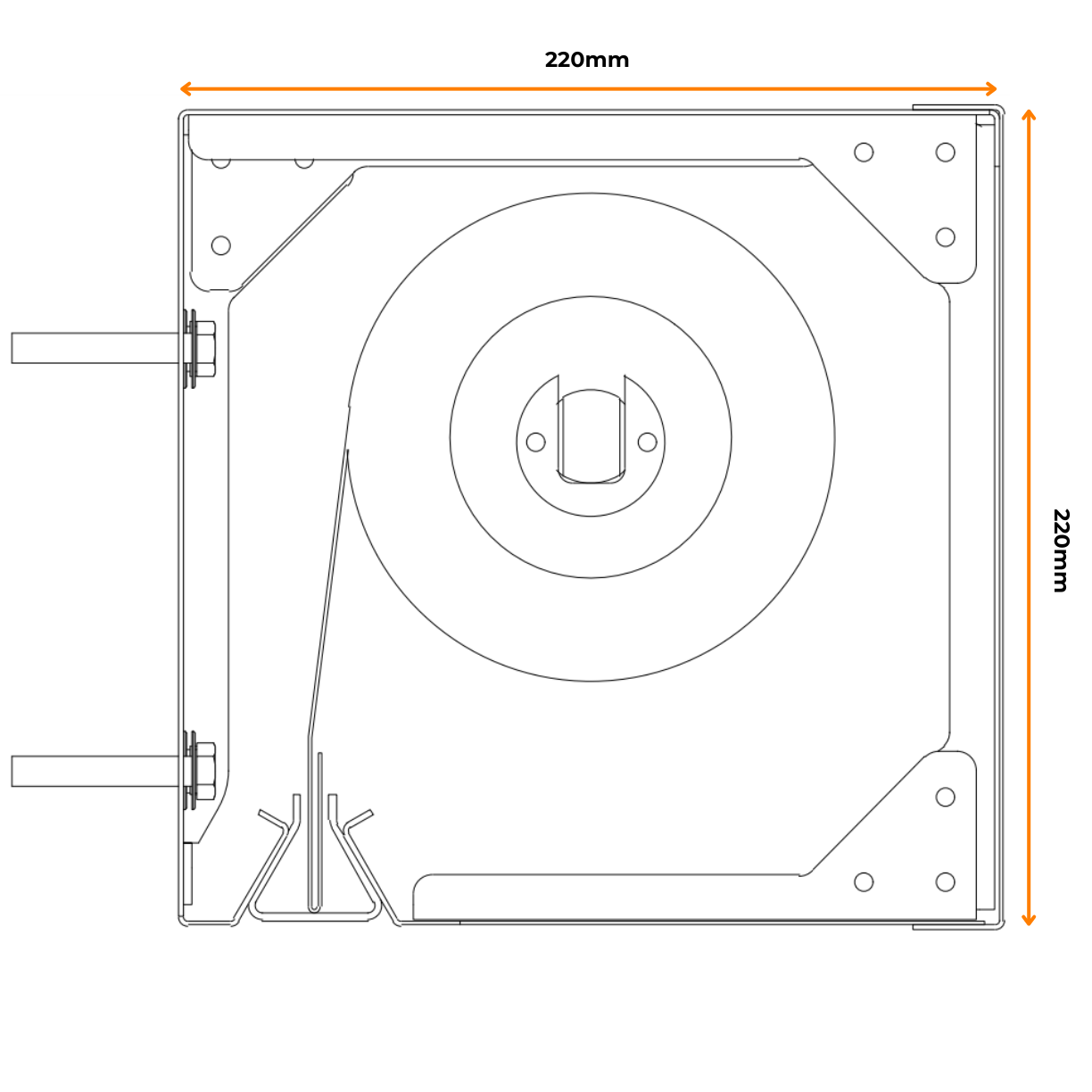

Vertical-headbox-face-fix

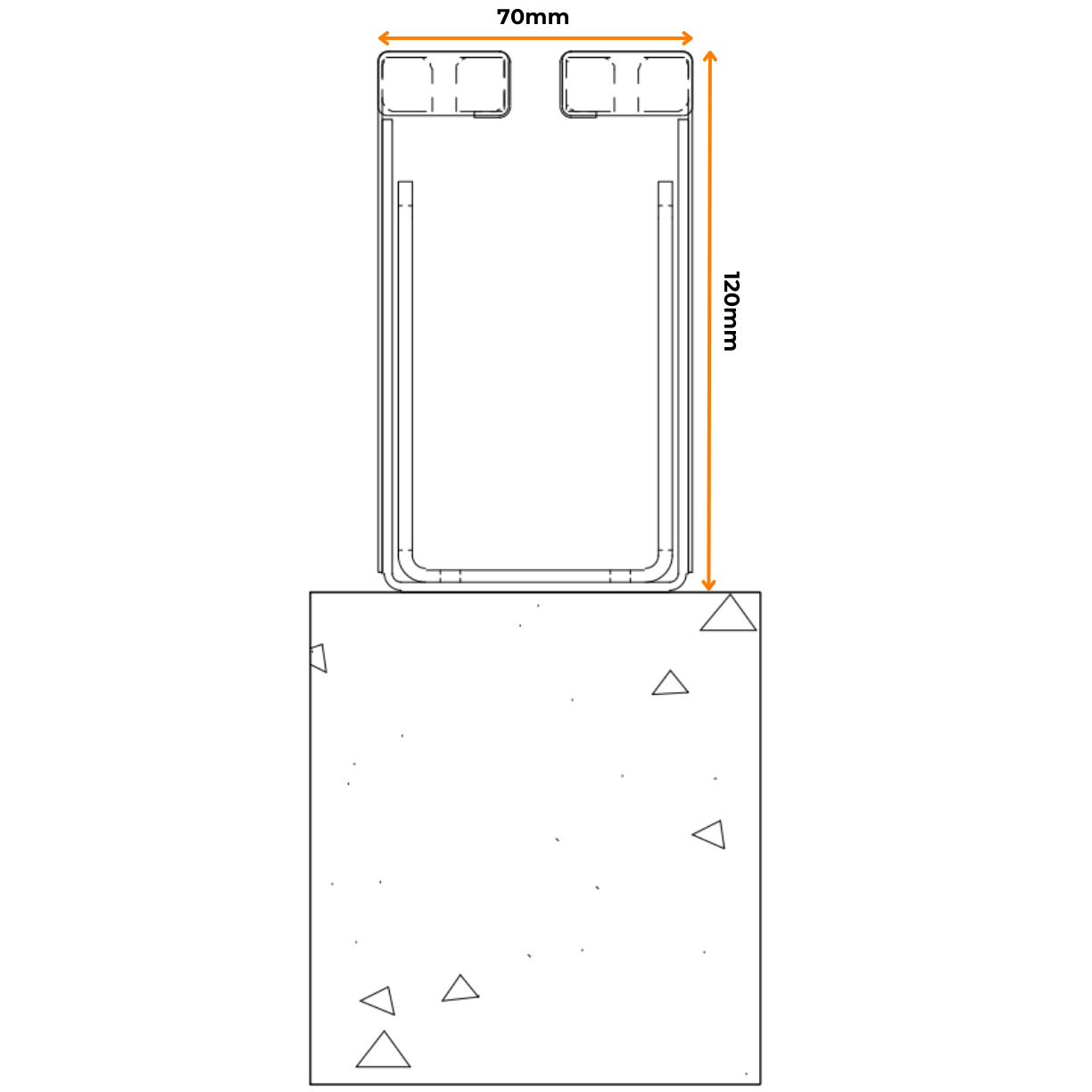

Vertical-side-guide-reveal-fixed

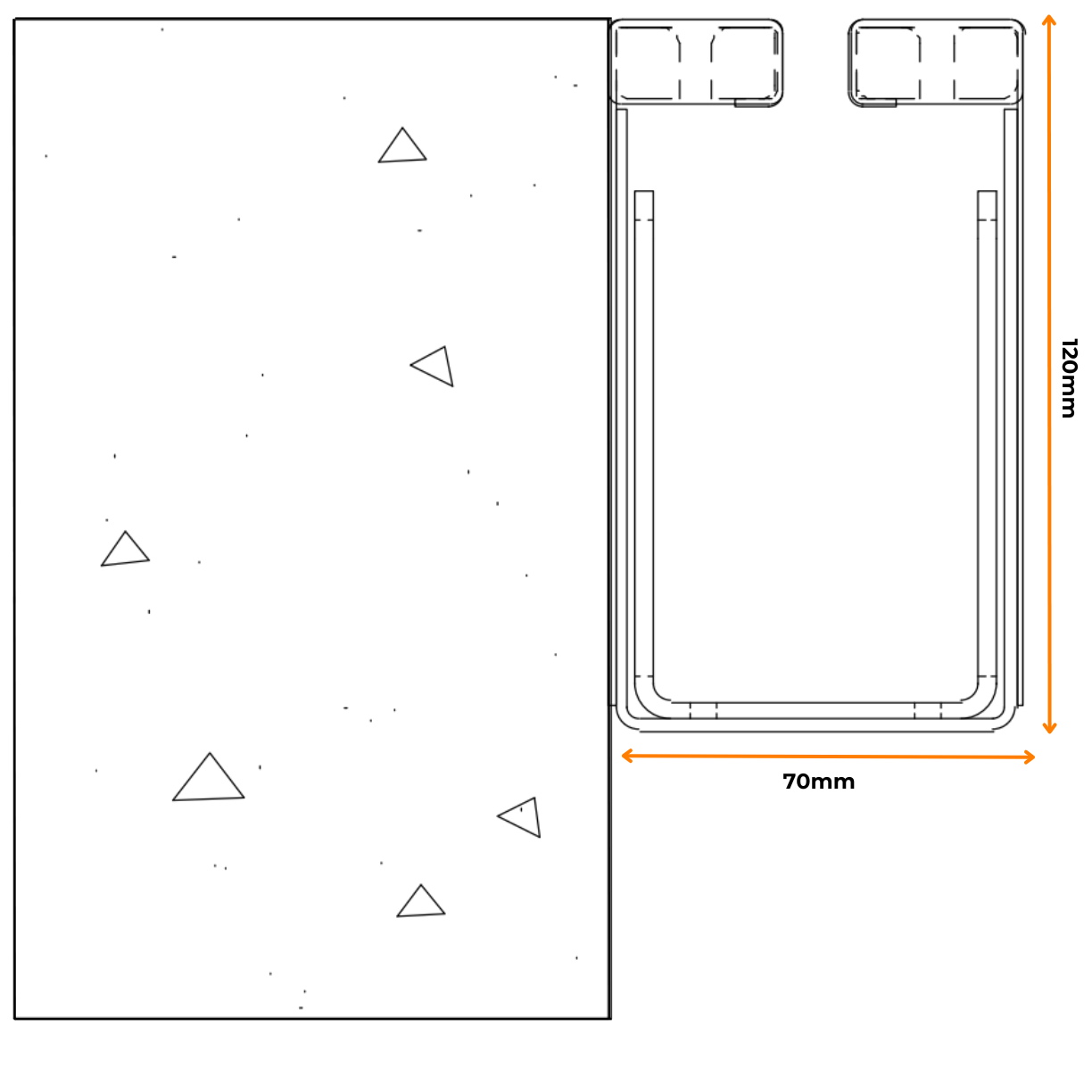

Vertical-side-guide-face-fixed

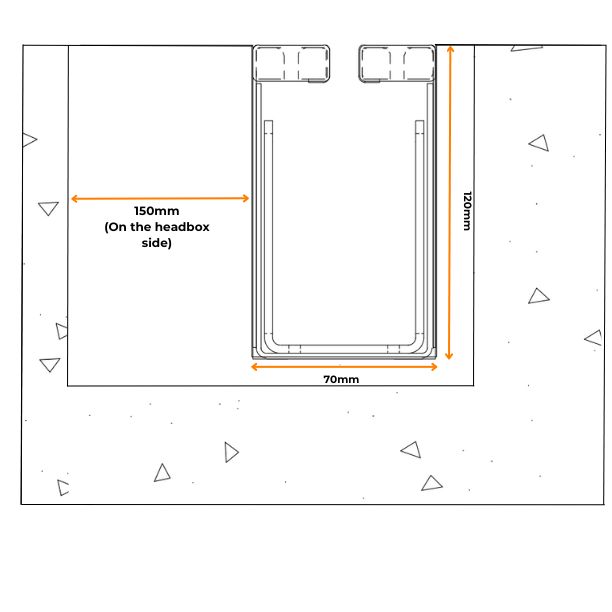

Vertical-side-guide-embedded
